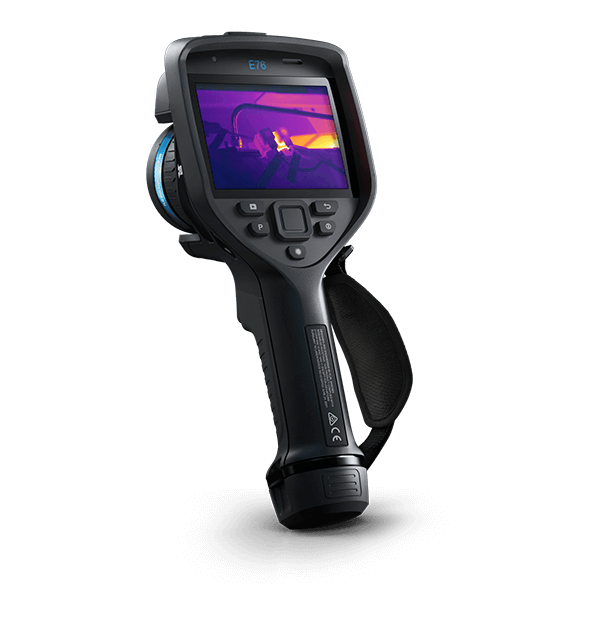

The FLIR E76 offers complete coverage of near and distant targets through a range of lens options. A step up from the FLIR E54, the E76 includes laser-assisted autofocus and 3 area measurement boxes. The 320× 240 thermal resolution produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E76 images directly from the camera to the cloud for easy, secure storage and sharing.
LKR 3,697,704
| Month(s) | Handling Fee (%) | Monthly (Approx) | Total (Approx) |
|---|---|---|---|
| 3 | 0.00% | 1,454,430.24 | 4,363,290.72 |
| 6 | 0.00% | 727,215.12 | 4,363,290.72 |
| Month(s) | Handling Fee (%) | Monthly (Approx) | Total (Approx) |
|---|---|---|---|
| 6 | 0.00% | 727,215.12 | 4,363,290.72 |
| Highlighted | |
|---|---|
| IR Resolution | 320 × 240 pixels |
| Thermal Sensitivity_NETD | <30 mK, 42° at 30°C (86°F) <40 mK, 24° at 30°C (86°F) <50 mK, 14° at 30°C (86°F) <40 mK at, 80° 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Field of view [FOV] | FLIR E76 42°: 42° × 32° FLIR E76 24°: 24° × 18° FLIR E76 14°: 14° × 10° FLIR E76 80°: 80° × 63° |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use |
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Imaging & Optical | |
|---|---|
| Color palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use |
| Digital Zoom | FLIR E76 14°, FLIR E76 24° - NIST, FLIR E76 24° - No Radio, FLIR E76 24° - Refurbished, FLIR E76 24°, FLIR E76 42° - NIST, FLIR E76 42°, FLIR E76 24° + 14°, FLIR E76 24° + 42°, FLIR E76 24°, 14° + 42° - NIST, FLIR E76 24°, 14° + 42°, FLIR E76 42° + 14°: 1-4× continuous FLIR E76 Dual FOV 14° + 24°, FLIR E76 80°, FLIR E76 + Dual FOV (24° + 42°), FLIR E76 + Dual FOV (42° + 24°) + 14°: 1-8× continuous |
| f number | FLIR E76 14°: 1.5 FLIR E76 24°, FLIR E76 80°: 1.3 FLIR E76 42°: 1.1 |
| Field of View | 42° × 32°, 24° × 18°, 14° × 10° |
| Field of view [FOV] | FLIR E76 42°: 42° × 32° FLIR E76 24°: 24° × 18° FLIR E76 14°: 14° × 10° FLIR E76 80°: 80° × 63° |
| Focal Length | 42°: 10 mm (0.39 in) 24°: 17 mm (0.67 in) 14°: 29 mm (1.41 in) 80°: 5 mm (0.19 in) |
| Focus | Continuous LDM, One-shot LDM, One-shot contrast, Manual |
| Image Frequency | 30 Hz |
| IR Resolution | 320 × 240 pixels |
| Lens Identification | Automatic |
| Minimum Focus Distance | 0.15 m, 42° 0.15 m, 24° 1.0 m, 14° |
| Minimum Focus Distance with MSX | 42°: 0.65 m (1.98 ft) 24°: 0.5 m (1.64 ft) 14°: 1.0 m (3.28 ft) |
| Non_radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture_in_Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Spatial resolution [IFOV] | 80°: 5.2 mrad/pixel 42°: 2.41 mrad/pixel 24°: 1.31 mrad/pixel 14°: 0.75 mrad/pixel |
| Spectral Range | 7.5-14 µm |
| Thermal Sensitivity_NETD | <30 mK, 42° at 30°C (86°F) <40 mK, 24° at 30°C (86°F) <50 mK, 14° at 30°C (86°F) <40 mK at, 80° 30°C (86°F) |
| UltraMax | Yes |
| Viewfinder | No |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Object Temperature Range | -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F). 300 to 1000°C (572 to 1832°F) range available with purchase of T199559 High Temperature Option |
| Spot Meter | 3 ea. in live mode |
| User Interface | |
|---|---|
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Text | Predefined list or touchscreen keyboard |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth® |
| Communication & Data Storage | |
|---|---|
| Communication Interfaces | USB 2.0, Bluetooth®, Wi-Fi, DisplayPort |
| Image File Format | Standard JPEG with measurement data included. Infrared-only mode |
| Image Storage Mode | Infrared, Visual, MSX®, Picture-in-Picture, Gallery |
| METERLiNK | Yes |
| Storage Media | Removable SD card |
| Time Lapse | 10 seconds to 24 hours (infrared) |
| Video Out | DisplayPort over USB Type-C |
| Power | |
|---|---|
| Battery operating time | >2.5 hours at 25°C (68°F) and typical use |
| Battery Type | Rechargeable Li-ion battery |
| Environmental & Certifications | |
|---|---|
| Operating Temperature Range | -15 to 50°C (5 to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| General | |
|---|---|
| FLIR Inspection Route | Enabled in camera |
| Laser Pointer | Yes |
| Packaging | Infrared camera with lens, s2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter |
Inspect and Troubleshoot Faster than Ever
Pair your Exx-Series camera with a FLIR FlexView dual field-of-view lens to conveniently switch from wide-area to telephoto scanning with one press of a button.
Use FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues.
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E76 streamline your workday. (*Optional accessory software)
