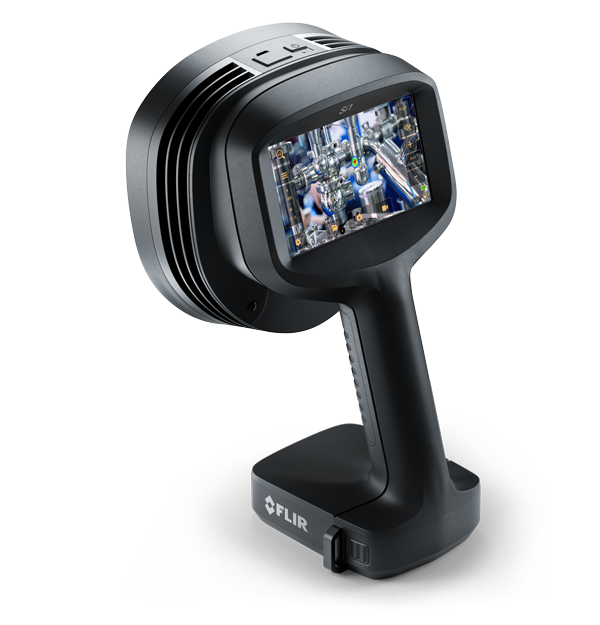

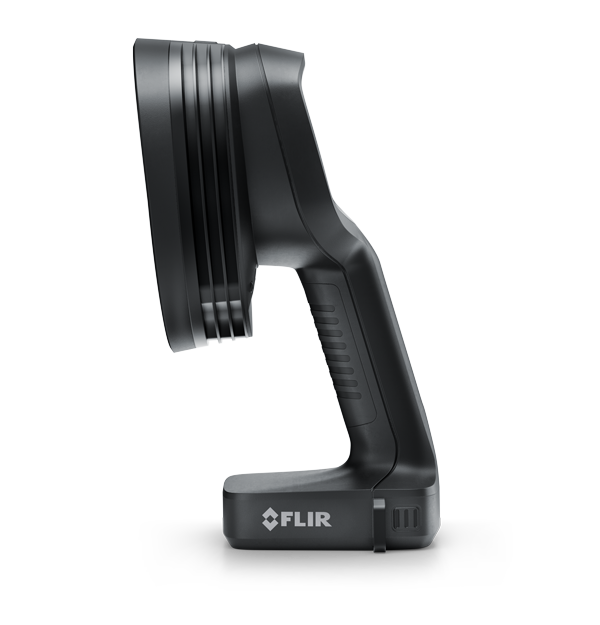

The FLIR Si1-LD is an easy-to-use acoustic imaging camera for locating and quantifying pressurized leaks in compressed air systems. This lightweight, one-handed camera is designed to help maintenance, manufacturing, and engineering professionals identify air leaks faster than with traditional methods. Built with a carefully constructed array of MEMS microphones for high sensitivity, the Si1-LD produces a precise acoustic image that visually displays ultrasonic information, even in loud, industrial environments. The acoustic image is overlaid in real time on a digital image, allowing you to accurately pinpoint the source of the sound, with onboard analytics which quantify the losses being incurred. The Si1-LD features a plugin that enables you to import acoustic images to FLIR Thermal Studio suite for offline editing, analysis, and advanced report creation. Field analysis and reporting can also be done using the FLIR Acoustic Camera Viewer cloud service. Transferring of images can be managed via memory stick or USB data cable. Through a regular maintenance routine, the FLIR Si1-LD can help facilities reduce their environmental impact and save money on utility bills.
| Month(s) | Handling Fee (%) | Monthly (Approx) | Total (Approx) |
|---|---|---|---|
| 3 | 0.00% | 0.00 | 0.00 |
| 6 | 0.00% | 0.00 | 0.00 |
| Highlighted | |
|---|---|
| Acoustic Measurement | Low-noise MEMS microphones, real-time sound visualization |
| Distance | From 0.3 m (1.0 ft) up to 130 m (427 ft) |
| Leak Rate | Minimum Detectable Leak Rate (MDLR): 0.01 l/min from 2.5 m (8.2 ft) |
| Imaging & Optical | |
|---|---|
| Camera software update | - Automatic over Wi-Fi - USB via computer |
| Field of view [FOV] | 65° diagonal |
| Video Frame Rate | Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps |
| Video Image Resolution | 1280 × 720 |
| Zoom | 8x Digital zoom |
| Measurement & Analysis | |
|---|---|
| Able to Quantify | Compressed air |
| Acoustic Measurement | Low-noise MEMS microphones, real-time sound visualization |
| Bandwidth | 2 kHz to 100 kHz |
| Detection Threshold | 20 kHz: −5 dB 35 kHz: 9 dB 50 kHz: 15 dB 80 kHz: 41 dB 100 kHz: 56 dB |
| Distance | From 0.3 m (1.0 ft) up to 130 m (427 ft) |
| Leak Rate | Minimum Detectable Leak Rate (MDLR): 0.01 l/min from 2.5 m (8.2 ft) |
| User Interface | |
|---|---|
| Display | Size: 5 in. 1280 × 720, Resistive touch screen, TFT LCD, MIPI DSI |
| Power | |
|---|---|
| Battery | Li-ion rechargeable battery pack (RRC 2054):14.4 V DC, 3.45 Ah, 49.68 Wh Usage: Up to 2.5 h Charge time: approx. 2 h Max output: 16.8 V DC, 5 A |
| Battery Charger | Input: 19 V to 26 V DC, 2.8 A Max output: 17.4 V DC, 4.8 A |
| Battery weight | ~ 0.25 kg |
| Environmental & Certifications | |
|---|---|
| Operating And Storage Temperature Range | Operating Temperature Range −10°C to 50°C (14°F to 122°F) Storage Temperature Range −20°C to 50°C (−4°F to 122°F) max −20°C to 25°C (−4°F to 77°F) recommended |
| Protection Class | IP54 |
| Warranty | http://www.flir.com/warranty/ |
| General | |
|---|---|
| Battery Size | 85 mm × 77 mm (RRC2504) |
| Packaging Size | 490 mm × 365 mm × 190 mm (19.3 in × 14.4 in × 7.5 in) |

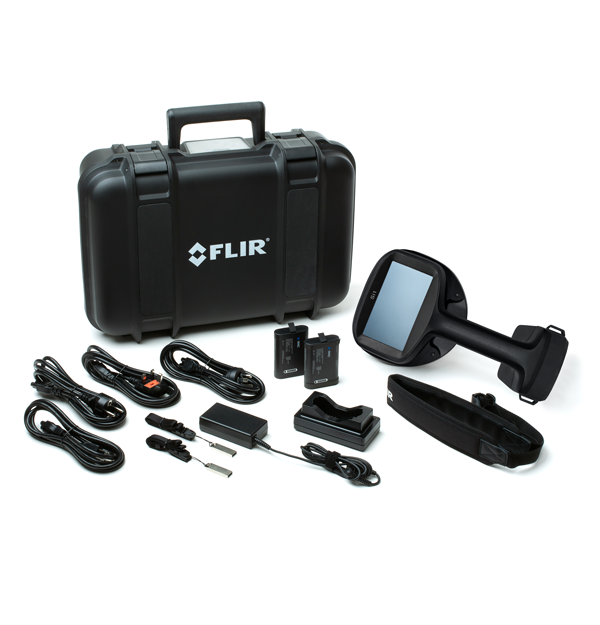

| Packaging Type | FLIR Si1-LD: Hard transport case FLIR Si1-LD (No Wi-Fi): Cardboard box |
| Packaging Weight | 6 kg (13 lb) |
| Size | 184 mm × 276 mm × 167 mm (7 in × 11 in × 6 in) |
| Total Weight [Including All Accessories] | ~ 1.45 kg |
| Weight | ~ 1.2 kg |
Bandpass filtering allows manual adjustment of the frequencies being analyzed.
The Si1’s advanced hardware and algorithms provide increased sensitivity compared to many cameras with more microphones.
Quantify leak severity in real time with this lightweight, smart tool, with simple online or offline reporting options.
