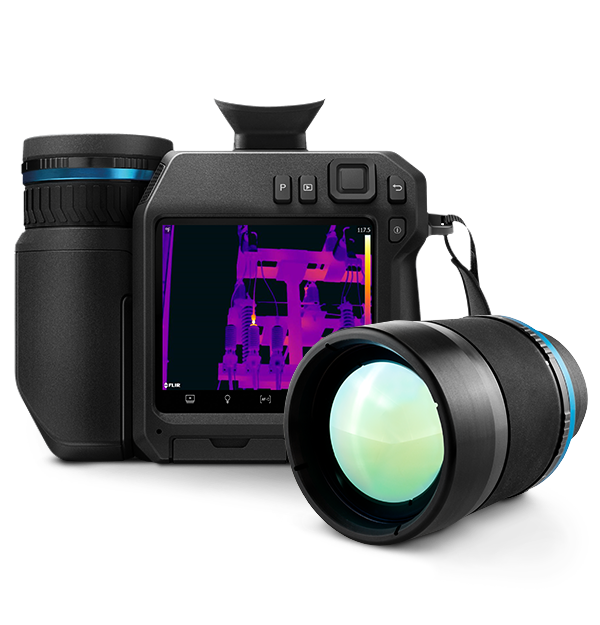

The FLIR T840 infrared camera is designed to help electric utility and other thermography professionals comfortably survey equipment both indoors or outdoors and seek out signs of failure all day long. Thanks to an integrated eyepiece viewfinder and a bright 4-inch color LCD display, the T840 makes it easy to conduct inspections outside in bright, challenging light conditions. The 180° rotating lens platform and thoughtful ergonomic design helps users quickly diagnose failing components in hard-to-reach areas. Pair the T840 with a FLIR FlexView™ dual field of view lens for the convenience to instantly switch from wide-area to telephoto scanning. A 6° telephoto lens option is also available to ensure accurate temperature measurement of small targets from farther distances.
| Month(s) | Handling Fee (%) | Monthly (Approx) | Total (Approx) |
|---|---|---|---|
| 3 | 0.00% | 0.00 | 0.00 |
| 6 | 0.00% | 0.00 | 0.00 |
| Highlighted | |
|---|---|
| IR Resolution | 464 × 348 (161,472 pixels) |
| Thermal Sensitivity_NETD | <30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Field of view [FOV] | 80° × 63° |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 6° or 80° lens in use |
| Display | 4", 640 x 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Imaging & Optical | |
|---|---|
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 6° or 80° lens in use |
| Digital Zoom | 1-6x continuous |
| f number | 42° lens: 1.1, 24° lens: 1.3, 14° lens: 1.5, 6° lens: 1.35, 80° lens: 1.3, |
| Field of View | 42° × 32° 24° × 18° |
| Field of view [FOV] | 80° × 63° |
| Focal Length | 42°: 10 mm (0.39 in) 24°: 17 mm (0.67 in) 14°: 29 mm (1.41 in) 6°: 70 mm (2.80 in) 80°: 5 mm (0.19 in) |
| Focus | Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Image Frequency | 30 Hz |
| IR Resolution | 464 × 348 (161,472 pixels) |
| Lens | 24°, 14°, 42°, 80°, 6°, DFOV (24°, 14°), DFOV (42°, 24°) |
| Lens Identification | Automatic |
| Macro Mode | 24° lens option 71 µm effective spotsize |
| Minimum Focus Distance | 42° lens - 0.15 m; 24° lens - 0.15 m, optional macro mode; 14° lens - 1.0 m; 6° lens - 5.0m; 80° lens - 0.1m; |
| Minimum Focus Distance with MSX | FLIR T840 + DFOV (14° + 24°): .5 m (1.64 ft) / 1.0 m (3.28 ft) FLIR T840 + Dual FOV (24° + 42°): 42°: 0.65 m (1.98 ft) 24°: 0.5 m (1.64 ft) |
| Non_radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture_in_Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Spatial resolution [IFOV] | 42°: 1.2 mrad/pixel 24°: 0.7 mrad/pixel |
| Spectral Range | 7.5 - 14.0 µm |
| Thermal Sensitivity_NETD | <30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) |
| UltraMax | Quadruples pixel count; activated in menu and processed in FLIR Tools |
| Viewfinder | Yes |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Object Temperature Range | -40°C to 120°C (-40°F to 248°F) 0°C to 650°C (32°F to 1202°F) 300°C to 2000°C (572°F to 3632°F) |
| Spot Meter | 3 ea. in live mode |
| User Interface | |
|---|---|
| Display | 4", 640 x 480 pixel touchscreen LCD with auto-rotation |
| Text | Predefined list or touchscreen keyboard |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
| Communication & Data Storage | |
|---|---|
| Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi |
| Image File Format | Standard JPEG with measurement data included |
| Image Storage Mode | Infrared, visual, MSX®, Picture-in-Picture |
| METERLiNK | Yes |
| Storage Media | Removable SD card |
| Time Lapse | 10 sec to 24 hrs |
| Video Out | DisplayPort over USB Type-C |
| Power | |
|---|---|
| Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li-ion battery, charged in camera or on separate charger |
| Environmental & Certifications | |
|---|---|
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| General | |
|---|---|
| Compatible with FLIR software | FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK |
| Laser Pointer | Yes |
| Packaging | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C) |
