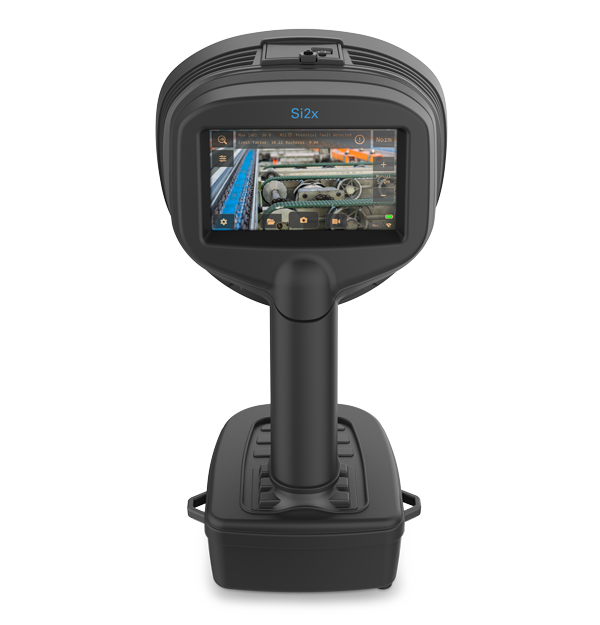

FLIR Si2x-Pro™ Hazardous Location Acoustic Imaging Camera for Gas Leak, Mechanical Fault, and Partial Discharge Detection

Out of Stock

FLIR Si2x-Pro™ Hazardous Location Acoustic Imaging Camera for Gas Leak, Mechanical Fault, and Partial Discharge Detection

The Si2x-Pro Acoustic Imaging Camera is specifically designed for use in hazardous gas and explosive dust environments, to easily reduce leaks of toxic or flammable gases to improve safety, or cut expenses associated with compressed air or gas leaks in your facilities. With its advanced analysis tools, the Si2x-Pro provides a robust solution for lowering costs associated with mechanical bearing issues and partial discharge on electrical equipment. Engineered for hazardous operations, it offers best-in-class performance, decision support, and fleet management, along with enterprise data integration for optimal efficiency and safety.

For those not requiring partial discharge detection, you can opt for the Si2x-LD for leak and mechanical fault detection.

Monthly From 0.00

Sampath Bank Payment Plans

The installment payment calculations now include the VAT(18%) amount of Rs.0.00, bringing the total cost to Rs.0.00. All displayed amounts reflect this inclusive pricing for complete transparency.

Month(s)	Handling Fee (%)	Monthly (Approx)	Total (Approx)
3	0.00%	0.00	0.00
6	0.00%	0.00	0.00
12	0.00%	0.00	0.00

Have questions? Chat with us on WhatsApp. We're here to help!

Highlighted
Acoustic Measurement	124 low-noise MEMS microphones, real-time sound visualization
Severity Assessment	Automatic AI-based partial discharge severity assessment including recommended actions onboard camera
Distance	From 0.3 m (1.0 ft) up to 200 m (656 ft)
Leak Rate	0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)

Imaging & Optical
Camera software update	Automatic Over The Air (OTA) wireless update or via USB connection
Field of view (FOV)	75° diagonal
Video Frame Rate	Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps
Video Image Resolution	1280 × 720
Zoom	8x Digital zoom

Measurement & Analysis
Acoustic Measurement	124 low-noise MEMS microphones, real-time sound visualization
Bandwidth	2 kHz to 130 kHz
Detection Threshold	20 kHz: -8 dB SPL 35 kHz: 4 dB SPL 50 kHz: 13 dB SPL 80 kHz: 42 dB SPL 100 kHz: 58 dB SPL
Detects Following Gases	Compressed Air, Nitrogen, Ammonia, Hydrogen, Carbon Dioxide, Methane, Helium, and Argon
Distance	From 0.3 m (1.0 ft) up to 200 m (656 ft)
Leak Rate	0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)
Mechanical Analysis	Mechanical Sound Indicator (MSI) Confirmation, Sound Pressure Level (dB), Crest factor, Kurtosis factor
Severity Assessment	Automatic AI-based partial discharge severity assessment including recommended actions onboard camera

User Interface
Display	Size: 5 in. 1280 × 720 Resistive touch screen, TFT LCD, MIPI DSI

Power
Battery	Li-Ion rechargeable battery pack: 14.4 V DC, 3.45 Ah, 49.68 Wh. Max output: 16.8 V DC, 5 A Usage: up to 2.5 Charge time: approx. 2 h
Battery Charger	Input: 19-26 V DC, 2.8 A Max output: 17.4 V DC, 4.8 A
Battery weight	~ 0.25 kg
Nominal Input Voltage	Nominal input voltage: 12 V DC Max input: 17 V DC , 3.3 A (limited)

Environmental & Certifications
Explosive [hazardous] Environment	Ex II 3 G Ex ic IIIC T4 Gc Ex II 3 D Ex ic IIIC T135°C Dc Tamb -10°C to 40°C
Operating And Storage Humidity	0-90% recommended
Operating Temperature Range	–10°C to 50°C (14°F to 122°F)
Protection Class	IP54
Storage Temperature Range	–20°C to 70°C ( –4°F to 158°F)
Warranty	support.flir.com/Si2

General
Size	T912503: 184 × 276 × 167 mm (7.2 × 10.8 × 6.5 in) T912588: 188 × 313 × 176 mm (7.5 × 12.5 × 7 in)
Weight	T912503: ~ 1.2 kg (2.6 lbs) T912588: ~ 2.1 kg (4.5 lbs)
Worklights	LEDs, 2 modes: On/Off

Precisely detect, locate, and measure compressed air leaks, gas leaks, and partial discharges. Identify and quantify both minor and elusive issues from up to 200 m (656 ft) away—boosting operational efficiency and ensuring safety.

Save on costly repairs, reduce downtime, and enhance maintenance efficiency by identifying bearing and other mechanical defects before they overheat or cause equipment failure.

Ensure optimal use and maintenance of equipment in large-scale industrial settings with fleet management, cloud data integration, and OTA software updates. Combine acoustic and thermal imaging in the same report.

Flir Si2x-Series Acoustic Cameras for Hazardous Locations

Oil and gas
Chemical
Ammonia and hydrogen
Wastewater
Power generation
Pharmaceuticals
Manufacturing paint lines
Food and beverage

Why Choose the Flir Si2x-Series for Explosive Dust and Vapor Environments?

Certified for use in explosive atmospheres: gas and dust.

The Flir Si2x is certified for use in explosive atmospheres, giving you peace of mind in high-risk environments.

Reduces Costs and Improves Energy Efficiency

Si2x cameras accurately detect even the smallest leaks, helping you prevent energy loss and reduce operational costs. With real-time leak size and cost estimates, you can make quick, informed repair decisions to maintain efficiency.

Comprehensive monitoring

From pressurized gas quantification to mechanical fault detection, the Flir Si2x is a versatile tool that enhances your safety protocols and operational efficiency.

Faster and More Accurate Detection

Traditional leak detection methods can’t match the speed and accuracy of the Flir Si2x. It efficiently quantifies leaks in industrial gases such as compressed air, ammonia, hydrogen, carbon dioxide, methane, helium, and argon.

Mechanical Fault Detection Capabilities

The camera’s mechanical fault detection mode identifies and measures potentially faulty bearings, keeping your equipment in top condition.

Scalable ultrasound inspection tool

Whether your operation is large or small, the Flir Si2x offers a scalable solution that fits your specific needs.

Minimal Training Needed

Designed to be easy to use, the Si2x’s intuitive interface requires minimal training, making it accessible to all team members and ensuring comprehensive safety audits with minimal downtime.
