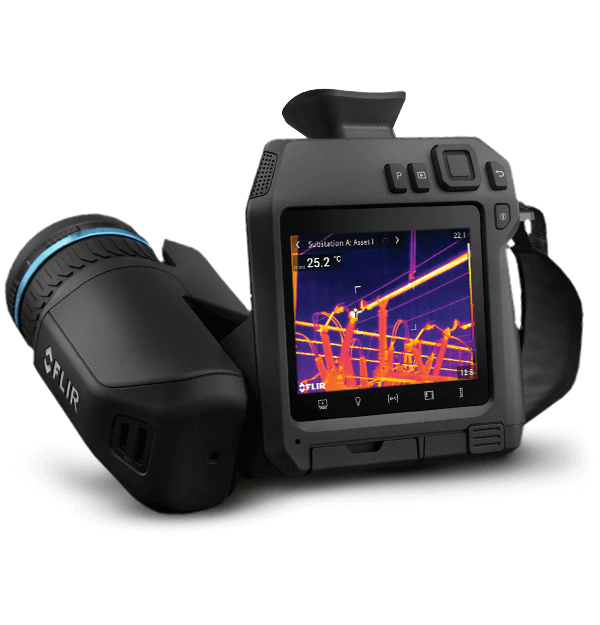

The FLIR T865 thermal imaging camera is a non-contact inspection tool with 180° rotating optical block that allows users to safely and comfortably assess the condition of critical electrical and mechanical equipment in utility and manufacturing applications. With advanced features including unmatched temperature measurements down to -40°C, accuracy as good as 1°C/1%, 1-Touch Level/Span contrast enhancement, and laser–assisted autofocus, you’ll get highly accurate temperature measurements every time. Pair the T865 with a FLIR FlexView™ dual field-of-view lens for the convenience to instantly switch from wide-area to telephoto scanning; or choose a 6° FOV IR lens to perform inspections on small targets from long distances. The on-board Inspection Route system helps you record temperature data and imagery in a logical sequence for faster troubleshooting and repair.
| Month(s) | Handling Fee (%) | Monthly (Approx) | Total (Approx) |
|---|---|---|---|
| 3 | 0.00% | 0.00 | 0.00 |
| 6 | 0.00% | 0.00 | 0.00 |
| 12 | 0.00% | 0.00 | 0.00 |
| Highlighted | |
|---|---|
| IR Resolution | 640 × 480 pixels |
| Thermal Sensitivity/NETD | <30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Field of view (FOV) | 80° × 63° |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 6° or 80° lens in use |
| Display | 4", 640 x 480 pixel touchscreen LCD with auto-rotation |
| Storage Media | Removable SD card |
| Imaging & Optical | |
|---|---|
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Type and Pitch | Uncooled microbolometer, 12 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 6° or 80° lens in use |
| Digital Zoom | 1-8x continuous |
| f-number | 42° lens: 1.1, 24° lens: 1.3, 14° lens: 1.5, 6° lens: 1.35, 80° lens: 1.3, |
| Field of View | 42° × 32° 24° × 18° |
| Field of view (FOV) | 80° × 63° |
| Focal Length | 42°: 10 mm (0.39 in) 24°: 17 mm (0.67 in) 14°: 29 mm (1.41 in) 6°: 70 mm (2.80 in) 80°: 5 mm (0.19 in) |
| Focus | Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Image Frequency | 30 Hz |
| IR Resolution | 640 × 480 pixels |
| Lens | 24°, 14°, 42°, 80°, 6°, DFOV (24°, 14°), DFOV (42°, 24°) |
| Lens Identification | Automatic |
| Minimum Focus Distance | 42° lens - 0.15 m; 24° lens - 0.15 m, optional macro mode; 14° lens - 1.0 m; 6° lens - 5.0m; 80° lens - 0.1m; |
| Minimum Focus Distance with MSX | FLIR T865 + DFOV (14° + 24°): .5 m (1.64 ft) / 1.0 m (3.28 ft) FLIR T865 + Dual FOV (24° + 42°): 42°: 0.65 m (1.98 ft) 24°: 0.5 m (1.64 ft) |
| Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Resolution | 464 × 348 pixels (VGA) |
| Spatial resolution (IFOV) | 42°: 1.2 mrad/pixel 24°: 0.7 mrad/pixel |
| Spectral Range | 7.5 - 14.0 µm |
| Thermal Sensitivity/NETD | <30 mK at 30°C (42° lens), <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) |
| UltraMax | Quadruples pixel count; activated in menu and processed in FLIR reporting software. |
| Video Lamp | Built-in LED light |
| Viewfinder | Yes |
| Visual Image | Yes |
| Visual Video Recording | H.264 to memory card |
| Visual Video Streaming | Yes |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Object Temperature Range | -40°C to 120°C (-40°F to 248°F) 0°C to 650°C (32°F to 1202°F) 300°C to 2000°C (572°F to 3632°F) |
| Reference Temperature | Yes |
| Spot Meter | 10 ea. in live mode |
| User Interface | |
|---|---|
| Display | 4", 640 x 480 pixel touchscreen LCD with auto-rotation |
| Text | Predefined list or touchscreen keyboard |
| Touch Screen | Optically bonded PCAP |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
| Communication & Data Storage | |
|---|---|
| Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi |
| Image File Format | Standard JPEG with measurement data included |
| Image Storage Mode | Infrared, visual, MSX®, Picture-in-Picture |
| METERLiNK | Yes |
| Storage Media | Removable SD card |
| Time Lapse | 10 sec to 24 hrs |
| USB | USB Type-C: data transfer/video/power |
| USB - Standard | USB 2.0 High Speed |
| Video Out | DisplayPort over USB Type-C |
| Communication & Data Storage | |
|---|---|
| Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi |
| Image File Format | Standard JPEG with measurement data included |
| Image Storage Mode | Infrared, visual, MSX®, Picture-in-Picture |
| METERLiNK | Yes |
| Storage Media | Removable SD card |
| Time Lapse | 10 sec to 24 hrs |
| USB | USB Type-C: data transfer/video/power |
| USB - Standard | USB 2.0 High Speed |
| Video Out | DisplayPort over USB Type-C |
| Power | |
|---|---|
| Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery type | Li-ion battery, charged in camera or on separate charger |
| Power Management | Automatic shut-down and sleep mode |
| Environmental & Certifications | |
|---|---|
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Tripod Mounting | UNC 1/4"-20 |
| General | |
|---|---|
| Compatible with FLIR software | FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK |
| Laser Pointer | Yes |
| Packaging | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C) |
| Packaging Size | 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.) |
| Size (L x W x H) | •Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in.) |
