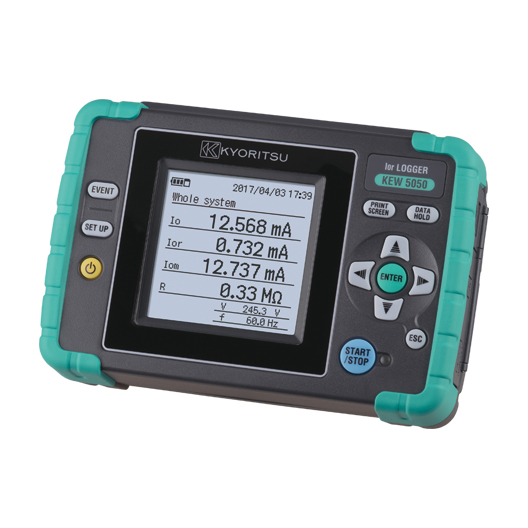

KEW 5050 Ior LOGGER

In Stock

KEW 5050 Ior LOGGER

Unpreceded Ior Logger!

Provides simultaneous measurements and logs up to 4 channels
Supports various wiring systems
(Single-phase 2&3-wire, Three-phase 3&4-wire*) *Except Ior for 3 Phase 4 wire
World’s fastest class speed at 200ms interval for leakage current measurement
Offers both traditional leakage / load current measurements
Large graphic display and magnet on the back case to attach it on metal enclosures

Original price was: LKR 988,659.Current price is: LKR 395,465.

In stock

Sampath Bank Payment Plans

The installment payment calculations now include the VAT(18%) amount of Rs.71,183.70, bringing the total cost to Rs.466,648.70. All displayed amounts reflect this inclusive pricing for complete transparency.

Month(s)	Handling Fee (%)	Monthly (Approx)	Total (Approx)
3	0.00%	155,549.57	466,648.70
6	0.00%	77,774.78	466,648.70
12	0.00%	38,887.39	466,648.70

Commercial Bank Payment Plans

Month(s)	Handling Fee (%)	Monthly (Approx)	Total (Approx)
6	0.00%	77,774.78	466,648.70
12	0.00%	38,887.39	466,648.70

Have questions? Chat with us on WhatsApp. We're here to help!

Ior
Wiring configuration		1P2W, 1P3W, 3P3W, 3P4W
Measurements and parameters		Ior : Leakage current (Trms) with resistive components only Io : Leakage current (Trms) with basic wave of 50/60Hz only Iom : Leakage current (Trms) including harmonic components V : Reference voltage (Trms) with basic wave of 50/60Hz only Vm : Reference voltage (Trms) including harmonic components R : Insulation resistance, Frequency(Hz), Phase angle(θ)
Other functions		Digital output, Print screen, Backlight, Data hold
Recording Interval		200/400ms/1/5/15/30s/1/5/15/30m/1/2hours
	Range	10.000/100.00/1000.0mA/10.000A/AUTO
	Accuracy	For reference voltages of sine wave 40 to 70Hz and 90V Trms or higher, ±0.2%rdg±0.2%f.s. + clamp sensor amplitude accuracy + error of phase accuracy* (phase error) * add ±2.0%rdg to measured Io value when using Ior leakage clamp sensor. (θ: within the accuracy of reference voltage/ current phase difference ±1.0°)
	Allowable input	1% to 110% (Trms) of each range, and 200% (peak) of the range
	Display range	0.15% to 130% (display “0” for less than 0.15%, “OL” if the range is exceeded)
Io *Range, Allowable input and Display Range are the same as Ior .
	Accuracy	±0.2%rdg±0.2%f.s.+ clamp sensor amplitude accuracy
Iom *Range, Allowable input and Display Range are the same as Ior .
	Accuracy	±0.2%rdg±0.2%f.s.+ clamp sensor amplitude accuracy
	Measurement method	Sampling speed 40.96ksps (every 24.4μs), gapless, calculate Trms values every 200ms.
Voltage
	Range	1000.0V
	Accuracy	±0.2%rdg±0.2%f.s. * for waveforms of sine wave 40 to 70Hz
	Allowable input	10 to 1000V Trms, and 2000V peak
	Display range	0.9 to 1100.0V Trms (display “0” for less than 0.9V, “OL” if the range is exceeded)
Phase angle(θ)
	Display range	0.0 to ±180.0° (regarding the phase of reference voltage as 0.0°)
	Accuracy	Within ±0.5° for the inputs of 10% or higher of leakage current range, sine wave 40 to 70Hz, reference voltage of 90V Trms or higher. Within ±1.0° when using Ior leakage clamp sensor, and Within ±0.5°+ clamp sensor accuracy when using general purpose clamp sensor.
Frequency meter range		40 to 70Hz
External supply		AC100 to 240V(50/60Hz) 7.5VA max
Power source		LR6(AA)(1.5V) × 6 (Battery life approx. 11h)
Display / update period		160 × 160dots, FSTN monochrome display / 500ms
PC card interface		SD card (2GB) *standard accessory
Communication interface		USB
Temperature and humidity range		23±5°C, relative humidity 85% or less(no condensation)
Operating temperature and humidity range		-10 to 50°C, relative humidity 85% or less(no condensation)
Storage temperature and humidity range		-20 to 60°C, relative humidity 85% or less(no condensation)
Applicable Standards		IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2 IEC 61010-2-030, IEC 61010-031, IEC 61326
Dimension		165(L) × 115(W) × 57(D)mm
Weight		Approx. 680g (including batteries)

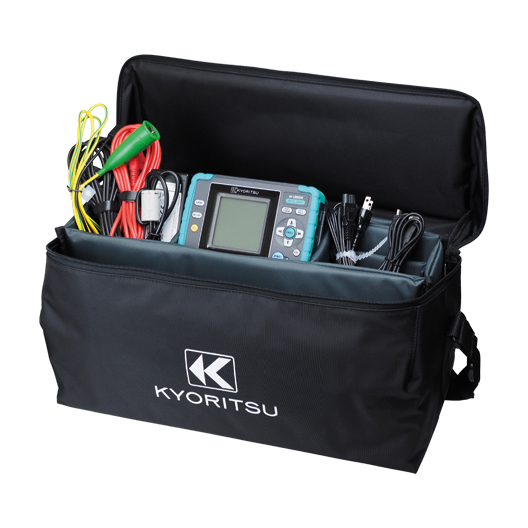

Accessories		7273 (Voltage test lead) 8262 (AC adapter) 7278 (Earth cable) 7219 (USB cable) 8326-02 (SD card [2GB]) 9125 (Carrying case) Instruction manual, Cable marker, LR6(AA) × 6
Optional Accessories		8177/8178 (Ior Leakage current Clamp Sensor) 8329 (Power supply adapter) 8121/8122/8123/8124/8125/8126/8127/8128 (Load current Clamp Sensor)* 8130/8133 (Flexible Clamp Sensor)* 8146/8147/8148 (Leakage & Load current clamp sensors)*

Please download “KEW Windows for KEW 5050(software)” from here.

Shows insulation resistance (R) values determined by the following formula.
V: Reference voltage/ Ior: Leakage current
Displayed value is just for reference since the measurement method differs from insulation resistance testers and may not be consistent with each other.
* Cannot be used for Ior measurement.
