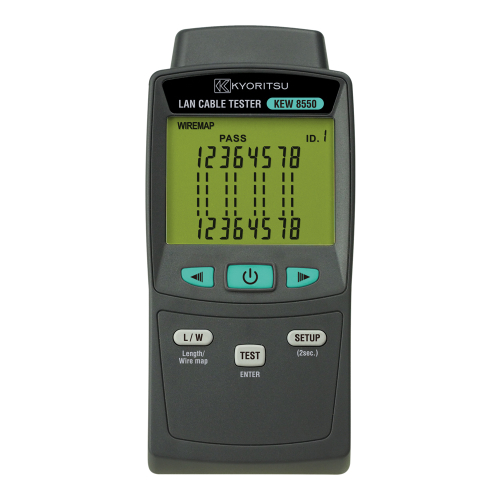

KYORITSU KEW 8550 LAN CABLE TESTER

Out of Stock

KYORITSU KEW 8550 LAN CABLE TESTER

Cable verification work necessary for
network construction can be simple and intelligible!

Wiremap function to check wiring just by one push button.
Incorrect wiring check function including Split pair.
Can measure the length of cable.
Backlight automatically turns on when powered on.
Can track up to 8 cables by using optional remote units.

* PoE verification, cable speed verification, and cable certification tests cannot be performed with KEW 8550.

Monthly From 0.00

Sampath Bank Payment Plans

The installment payment calculations now include the VAT(18%) amount of Rs.0.00, bringing the total cost to Rs.0.00. All displayed amounts reflect this inclusive pricing for complete transparency.

Month(s)	Handling Fee (%)	Monthly (Approx)	Total (Approx)
3	0.00%	0.00	0.00
6	0.00%	0.00	0.00
12	0.00%	0.00	0.00

Have questions? Chat with us on WhatsApp. We're here to help!

Measurable connector	RJ45 connector
Measurable cable	Twisted-pair cable(shielded wire(STP), unshielded wire(UTP))
Measurable cable category	CAT5, CAT5e, CAT6, CAT6A
Wiremap function （Testable length range 100m or less）	Opens, shorts, crossed, reversed, transposed, split pairs, and shielded / unshielded
Cable length measurement	0.1 to 255m
Accuracy	±10% ±1m
Operating temperature & humidity range	0 to 40℃, relative humidity of 80% or less(no condensation)
Storage temperature & humidity range	-10 to 60℃, relative humidity of 70% or less(no condensation)
Applicable standard	IEC 61326-1(EMC)
Power source	R03 / LR03(AAA)(1.5V)×6
Dimension	Display unit：156(L)×73(W)×35(D)mm Remote unit：72(L)×23(W)×24(D)mm
Weight	Display unit：Approx.245g(including batteries) Remote unit：Approx.25g

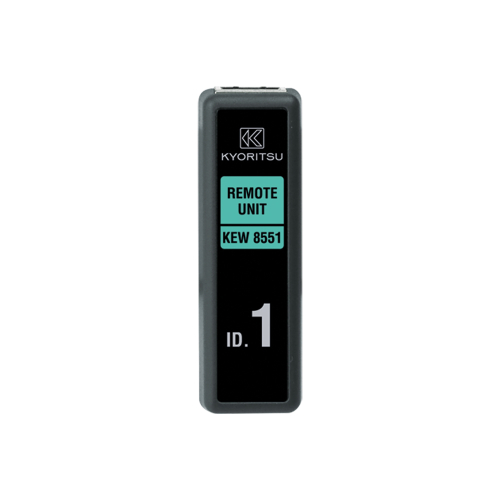

Accessories	8551-1(Remote unit (ID.1)) 9201(Carrying case) LAN cable × 2 Batteries, Instruction manual
Optional accessories	8551-25(Remote units (ID.2 to 5)) 8551-68(Remote units (ID.6 to 8))
