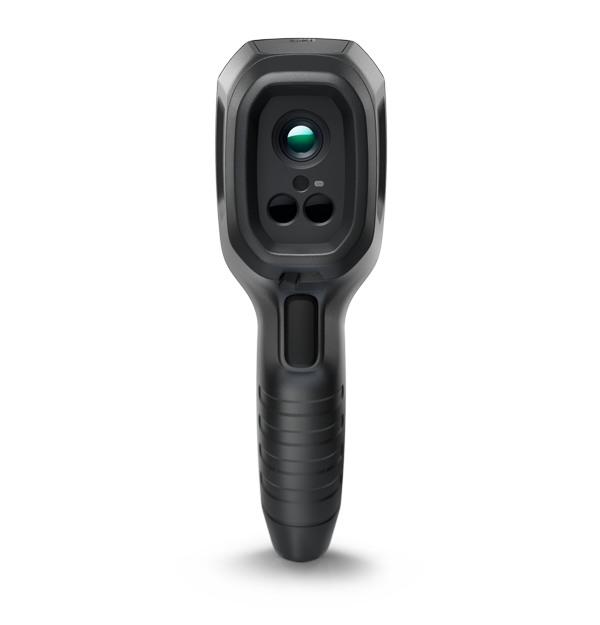

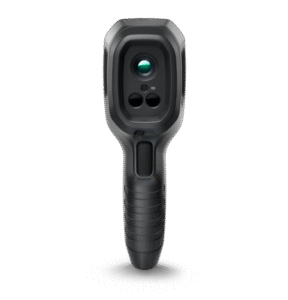

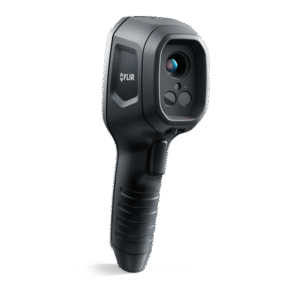

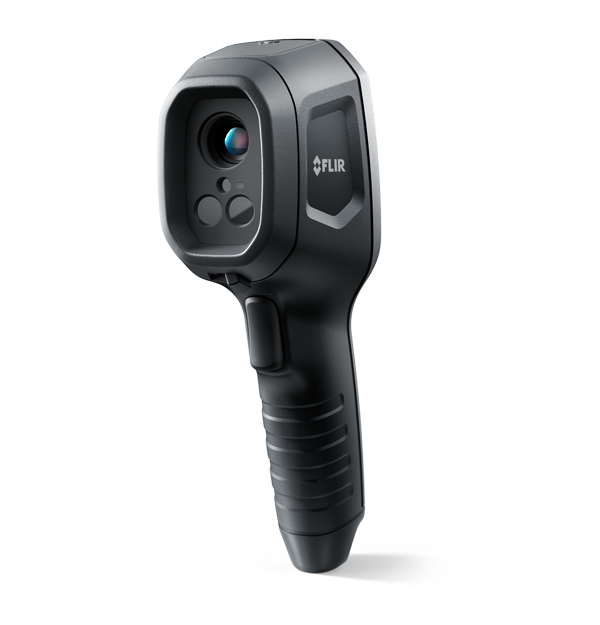

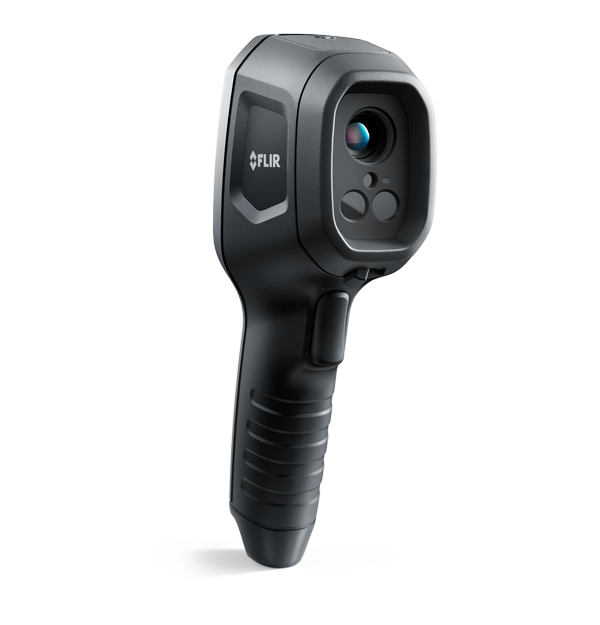

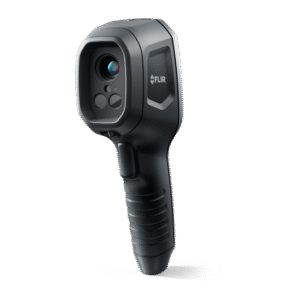

The FLIR TG298 is a one-of-a-kind industrial diagnostic tool that combines accurate temperature measurement with the ability to image up to 1080°C (1976°F). Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, and super resolution allows you to upscale images from 160 × 120 to 320 × 240 for superior detail. The FLIR TG298 is ideal for high-temperature industrial uses such as measuring the heat of glass furnaces, kilns, forges, as well as manufacturing applications, which allows you to accurately target potential faults, troubleshoot repairs, and monitor processes. Additionally, the METERLiNK® app enables remote monitoring of measurements and seamless documentation of inspection data, making it simple to produce comprehensive reports while in the field.
| Month(s) | Handling Fee (%) | Monthly (Approx) | Total (Approx) |
|---|---|---|---|
| 3 | 0.00% | 0.00 | 0.00 |
| 6 | 0.00% | 0.00 | 0.00 |
| Highlighted | |
|---|---|
| IR Resolution | 160 × 120 Super Resolution 320 × 240 |
| Thermal Sensitivity_NETD | <70 mK |
| Accuracy | ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F ) and 100°C to 400°C (213°F to 752°F)
±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F) and >400°C (>752°F) |
| Field of view [FOV] | 57° × 44° |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging) Visual with temperature reading |
| Display | 320 × 240, 2.4 in color LCD |
| Storage Media | 8 GB |
| Imaging & Optical | |
|---|---|
| Built_in Digital Camera | Yes |
| Color palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava |
| Detector Pitch | 12 µm |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Digital image enhancement | Yes |
| Field of view [FOV] | 57° × 44° |
| Focus | Focus free |
| Image Frequency | 8.7 Hz |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging) Visual with temperature reading |
| IR Resolution | 160 × 120 Super Resolution 320 × 240 |
| Laser | Class 1 laser indicates the temperature measurement area; button-activated |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
| Minimum Measurement Distance | 0.26 m (0.85 ft) |
| Non_radiometric IR video recording | Yes |
| Spectral Range | 7.5 - 14 µm |
| Thermal Sensitivity_NETD | <70 mK |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F ) and 100°C to 400°C (213°F to 752°F)
±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F) and >400°C (>752°F) |
| Camera size [L x W x H] | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
| Camera weight incl battery | 0.394 kg (13.9 oz) |
| Center spot | Yes |
| Emissivity Correction | Yes: 4 preset levels with custom adjustment of 0.1–0.99 |
| Object Temperature Range | −25°C to 1080°C (−13°F to 1976°F) |
| Spot Meter | Center spot on/off |
| User Interface | |
|---|---|
| Display | 320 × 240, 2.4 in color LCD |
| Communication & Data Storage | |
|---|---|
| Image Storage Capacity | 8 GB |
| Interfaces | USB 2.0, Bluetooth |
| Memory Type | Internal |
| METERLiNK | Yes |
| Saved image format | JPEG with spot temperature data |
| Storage Media | 8 GB |
| Time Lapse | Yes |
| USB | USB Type-C: data transfer/power |
| USB_Standard | USB 2.0 High Speed |
| Power | |
|---|---|
| Battery operating time | 5 hours continuous scanning, 4.5 hours with laser on |
| Battery Type | Rechargeable Li ion battery |
| Battery voltage | 3.7 V |
| Charging system | Battery is charged inside the camera |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Charging Time | 3 hours to 90%, 4 hours to 100% |
| Environmental & Certifications | |
|---|---|
| Certifications | CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan |
| Drop test | Designed for 2 m (6.6 ft) |
| EMC | EN 61000-6-3 EN 61000-6-2 FCC 47 CFR Part 15 Class B |
| Encapsulation | IP 54 (IEC60529) |
| Humidity [operating and storage] | 0 to 90% RH (0 to 37°C (32 to 98.6°F)), 0 to 65% RH (37 to 45°C (98.6 to 113°F)), 0 to 45% RH (45 to 55°C (113 to 131°F)) |
| Operating Temperature Range | −10°C to 45°C (14°F to 113°F) |
| Radio Spectrum | ETSI EN 300 328 FCC Part 15.249 RSS-247 Issue 2 EN 301 489-1:2011 EN 301 489-17:2009 |
| Safety | CE/CB/EN61010/UL |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | −30°C to 55°C (−22°F to 131°F) |
| Tripod Mounting | 1/4 in.-20 on handle bottom |
| Vibration | 2 g (IEC 60068-2-6) |
| Warranty | FLIR 2-10 warranty |
| General | |
|---|---|
| Form Factor | Pistol |
| Package Includes | TG298 Wrist Strap Lanyard Pouch USB Type-C cable Printed Documentation |

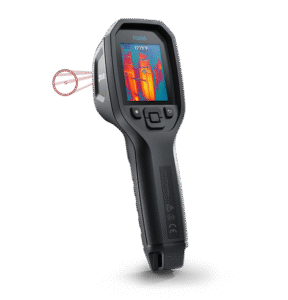

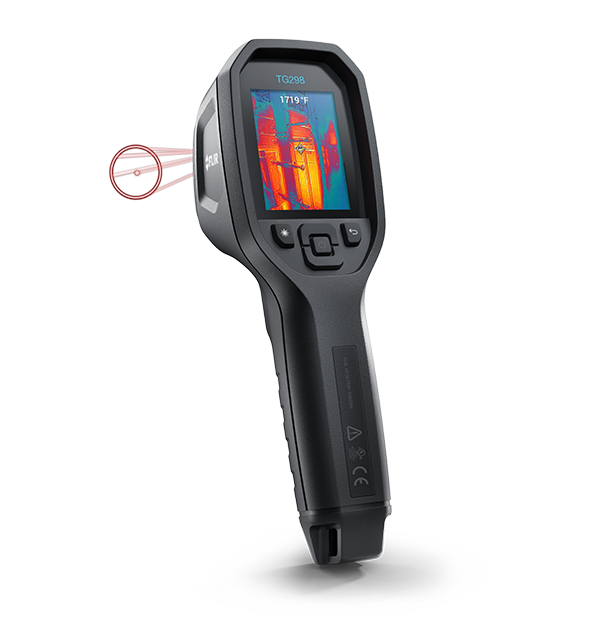

Accurately measure temperatures up to 1080°C (1976°F) with a 30:1 spot size ratio and bullseye laser pointer.
Diagnose problems quickly with FLIR-patented MSX image enhancement and Improve the details of native thermal images with super resolution, which allows you to upscale images to 320 × 240 (76,800 pixels) resolution.
The IP54 rated FLIR TG298 comes complete with a built-in LED worklight for better visibility in dark or poorly lit areas, and a 2 m drop test rating for durability.
