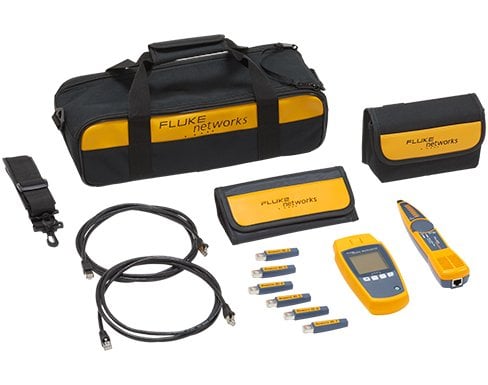

FLUKE MS2-KIT Microscanner 2 Professional Kit
Availability:
Out of stock
Key features
- Wire map, length, cable ID, distance to fault on one screen
- Tests common media types (RJ11, RJ45, coax) without adapters
- VDV Service Detection verifies 10/100/1000 Ethernet, POTS, and PoE
- Locate and trace cable or wire pairs with IntelliTone™ Pro 200
LKR 575,720
Out of stock
Compare
Product overview: Fluke Networks MicroScanner™ Cable Verifier Kit
The MicroScanner2 Cable Verifier helps find common errors quickly, displaying results from what were four different test modes all at once on its oversized, backlit LCD display: graphical wire map, pair lengths, distance to fault, cable ID, and far-end device. With the included IntelliTone™ Pro 200 probe, it locates and traces virtually any cable or wire pair via digital and analog toning. The MicroScanner2’s integrated RJ11, RJ45, and coax test ports support virtually any type of low-voltage cable testing, with no need for awkward adapters. The end result is reduced test time and technician error — which makes high-quality installations more efficient and troubleshooting easier.
FLUKE MS2-KIT Microscanner 2 Professional Kit
| Size | |
|---|---|
| Colour |
Specifications: Fluke Networks MicroScanner™ Cable Verifier Kit
Specifications apply at 23 °C (73 °F), unless otherwise noted.
| Environmental specifications | |
| Operating temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Storage temperature | -4 °F to +140 °F (-20 °C to +60 °C) |
| Operating relative humidity (% RH without condensation) | 90 % (50 °F to 95 °F 10 °C to 35 °C) 75 % (95 °F to 113 °F 35 °C to 45 °C) |
| Shock and vibration | Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached |
| Safety | IEC 61010-1 3rd Edition |
| Altitude | 4,000 m; Storage: 12,000 m |
| EMC | IEC 61326-1 |
| General specifications | |
| Test connectors | Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner2: F-connector for coaxial cable. |
| Power | Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD |
| Dimensions and weight (with batteries installed and wiremap adapter attached) | 3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) MicroScanner2: 10.6 oz (300 g) |
| Display | Monochrome LCD with backlight |
| Test modes | |
| Cable test | Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen. |
| Tone | Generates Intellitone™ and normal analog toning signals |
| PoE | MicroScanner2: Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices |
| Performance specifications | |
| Cable types tested | Twisted pair: UTP, FTP, SSTP Coaxial (MicroScanner2): 75 Ω, 50 Ω, 93 Ω |
| Length test | Range: 460 m (1500 ft) Resolution: 0.3 m (1 ft) Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error. Calibration: User-settable NVP for twisted pair and coax (MicroScanner2). Can determine actual NVP with known length of cable. |
| Wiremap test | Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults. |
| Ethernet port detection | MicroScanner2: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, and 1 Gbps. |
| Tone generator | Supports toning and cable mapping with a Fluke Networks digital IntelliTone™ probe. Generates four tones compatible with typical analog probes. SmartTone™ feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe. |
