KEW 1019R

Availability:

In stock


• Elegant shiny-black finish

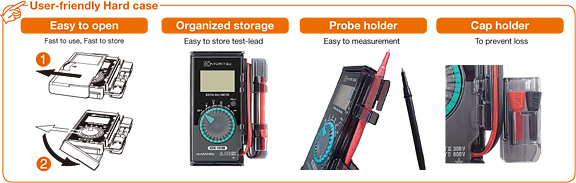

• Comes with user-friendly Hard case
• Large Display
• Accurate reading with True-RMS technology
• Electronic protection (no fuse!) on ohm and continuity ranges
• Safety Standard IEC 61010-1 / 61010-031 / 61010-2-033 CAT III 300V / CAT II 600V

Product Catalogue



TRUE RMS   DCACV   Resistance   Continuitybuzzer   Capacitance   Relative   AutoPowerSave

LKR 16,345 LKR 19,370

In stock

Compare

KEW 1019R

Colour
Size
Type
DC V 600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ)
±0.8%rdg ±5dgt (600.0mV/6.000/60.00V)
±1.0%rdg ±5dgt (600.0V)
AC V [RMS] 6.000/60.00/600.0V (Input impedance: approx. 10MΩ)
±1.3%rdg±5dgt (6.000/60.00V) (50/60Hz)
±1.7%rdg±5dgt (6.000/60.00V) (45 – 500Hz)
±1.6%rdg±5dgt (600.0V) (50/60Hz)
±2.0%rdg±5dgt (600.0V) (45 – 500Hz)
Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ
±1.0%rdg±5dgt (600.0Ω/6.000/60.00/600.0kΩ/6.000MΩ)
±2.5%rdg±5dgt (40.00MΩ)
Continuity buzzer 600.0Ω (Buzzer threshold value 60Ω or less)
Capacitance 6.000/60.00/600.0nF/6.000/60.00/600.0µF
±3.5%rdg±50dgt (6.000nF)
±3.5%rdg±10dgt (60.00nF)
±3.5%rdg±5dgt (600.0nF/6.000/60.00µF)
±4.5%rdg±5dgt (600.0µF)
Applicable standards IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2
IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2
Power source CR2032 (3V) Ă— 1
Approx. 120 hours, Auto sleep: approx: 15 minutes
Dimensions 126(L) Ă— 85(W) Ă— 18(D)mm
Weight Approx. 135g (including hard case, battery)
Included Accessories 9188 (Hard case), CR2032 Ă— 1, Instruction manual

* AC V: CF≦3(50/60Hz) For non-sinusoidal waveforms, add ±0.5%rdg±5dgt, 900Vpeak
